G-Snack SMX Vending Machine (Master)
RRP Price: £5,408.00 (£6,489.60 inc. VAT)
Our Price: £5,026.00
(£6,031.20 inc. VAT)
Total Saving: £382.00 (7%)
Price includes:
*Straightforward specialist deliveryUK mainland customers only
*Comprehensive pre-delivery inspection
Sales services:
*Technology specialists
*Highly experienced technical sales staff
*Planogram configuration champions
*Value added project input
*Tailored international shipping quotations
*Contact us for vinyl branding options
Bespoke Planogram Configuration
Maintenance Agreement (Parts & Labour)
- Quick find code: SMX
- Lead Time: Typically 4 to 6 weeks
- Model: G-Snack SMX
- Manufacturer: SandenVendo
- Condition: New
- Product Code: SMX
- Dimensions (mm): H1830 W1125 D845
- Weight: 340kg
View Brochure
View Downloads
Description
The G-Snack SMX combination vending machine from SandenVendo is a high capacity and extremely capable and versatile model. This large vending machine includes a spacious and brightly illuminated merchandising area enhancing the product display, plus metal control panel fascia for additional security. This makes this model perfectly suited to full high-end vinyl branding wraps. The SMX vending machine is the largest model in the range and suitable for merchandising snacks, drinks, food or retail products with an internal temperature range of 2 - 18°C. It also includes health switch control for perishable or temperature sensitive items.

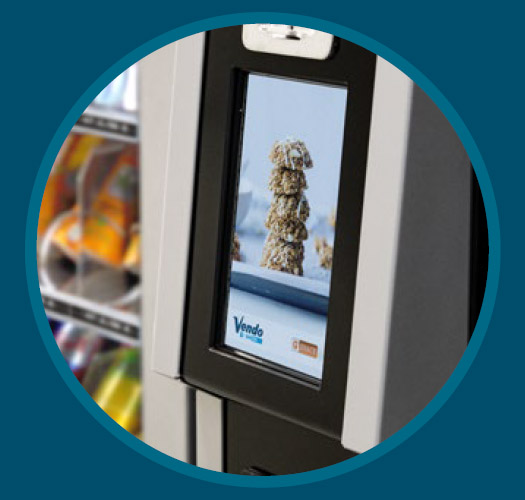

The G-Snack SMX combi vending machine is supplied as a modular solution with a range of options that can be selected by the customer to meet their specific vending needs. These upgrades include 7" touchscreen and e-labelling system for enhanced user experience and displaying important information to consumers. A speedy elevator system is also available to ensure products are delivered safely and reliably while allowing fragile or delicate items to be stocked and dispensed from any height. This vending machine is produced by SandenVendo who are a leading Japanese vending machine manufacturer.
The SMX combi vending machine is supplied as standard from our website as a spiral only model using the unique and highly flexible SandenVendo clip and ratchet system. The SMX also has modular dispense flexibility and can be upgraded and fitted with pusher and/or conveyor dispense systems at an additional cost. A mix of spiral, pusher and conveyor dispense systems can all be fitted to the same machine. This is a new and great feature for clients with more demanding product requirements, especially for retail applications where product flexibility and adjustability are key factors for consideration when selecting an automated retail hardware solution. These planogram configurations are more specialist, so please ask us for further information and a member of our team will be pleased to assist you. Once the planogram layout has been defined we can then provide you with a quotation and lead time.
For this SandenVendo master vending machine model, there is also the option to add a G-Snack bolt-on expansion unit. These connectable units bank to the side of a master vending machine and are fully controlled by it. This configuration increases overall capacity and product range for spiral snack and combi setups, while being more cost-effective than purchasing two separate master machines. When paired, both units operate using the same payment system(s), further reducing costs and simplifying management. Adding an expansion unit is an excellent way to grow your sales offering and maximise capacity without the expense of a second standalone master machine.
The SMX was updated in 2022 to include the latest state-of-the-art hydrocarbon R290 environmentally friendly chiller unit. The non-toxic hydrocarbons are an eco-friendly alternative to the CFC/HCFC/HFC fluorocarbons which contribute to ozone damage.
Details
Increasing reliability further, this outdoor snack vending machine is supplied as standard with optical sensors which are triggered when a product breaks an invisible beam. If the beam is not broken, the vending machine will try again; ensuring a successful vend. With an optional speedy elevator system to ensure products are delivered safely and reliably while also allowing fragile or delicate items to be stocked at any height. Pusher and conveyor dispense systems can also be included at an additional cost for more challenging product vending requirements.
The SMX snack and food vending machine is a large model in the G-Snack range. As standard this machine is supplied with 6 shelves fitted. Each shelf includes 10 single motor selections providing a maximum total of 60 selections. For clients with smaller height products who require increased capacity, an additional shelf can be added to the machine to increase the maximum total of selections to 70. Motor selections can also be paired and dual driven to suit wider products.
As a snack only vending machine, the standard configuration is usually three rows of chocolate bars at the bottom and three rows of crisps or bagged sweets at the top. Alternatively, as a combination vending machine, the planogram is usually configured with one row (bottom) for 500ml PET bottles, one row (second shelf) for 330ml or 250ml cans, two rows for chocolate bars, and two rows (top two shelves) for crisps or bagged sweets. Customisable planograms can be also be provided and there is provision for non-food/drink related setups for retail products.
The temperature is controlled thermostatically, with a range of 2 - 18°C. The G-Snack also features a safety health control which prevents sales, should the machine remain above the allowed temperature for over 30 minutes.
If you're interested to know more regarding the history of the vending machine manufacturer 'SandenVendo', a number of feature articles can be seen here:
- Part 1 of 3: Elmer F. Pierson and the beginning of Vendo
- Part 2 of 3: The beginning of Sanden
- Part 3 of 3: The Vendo Company & The Sanden Corporation merger

Product Features
- Insulated cabinet (35mm Eco PU Foam)
- Double pane glass
- LED lighting
- Temperature range: 2°C - 18°C
- Power supply: 230-240V AC/50 Hz
- Product shelves: standard 6 / max 7
- Product selections: 10 per shelf, total 60 (6 shelves) / max 70 (7 shelves)
- Modular planograms with spiral, pusher and conveyor dispense systems
- Payment system protocol compatibility: MDB / Executive
- Electronic temperature and health switch control
- Good energy rating with CO2 environmentally friendly chiller unit
- Highly customisable planogram setup
- Wide range options and upgrades depending on your requirements (including touchscreen, e-labelling, speedy elevator etc)
- Robust steel control panel fascia for additional security
- Perfectly suited to full high-end vinyl wrap branding
- Leading Japanese vending manufacturer
- High quality automated retail solution
- As used by leading global FMCG sector brands
- Fragile product safe delivery with optional elevator delivery mechanism
- Optional bolt-on G-Snack slave machine available to maximise spiral dispense snack or combi capacity
Files / Downloads
SandenVendo G-Snack Vending Machine Model Overview Brochure
G-Snack Slave Bolt-On Expansion Machine Brochure
G-Snack SMX Vending Machine (Master) Brochure
