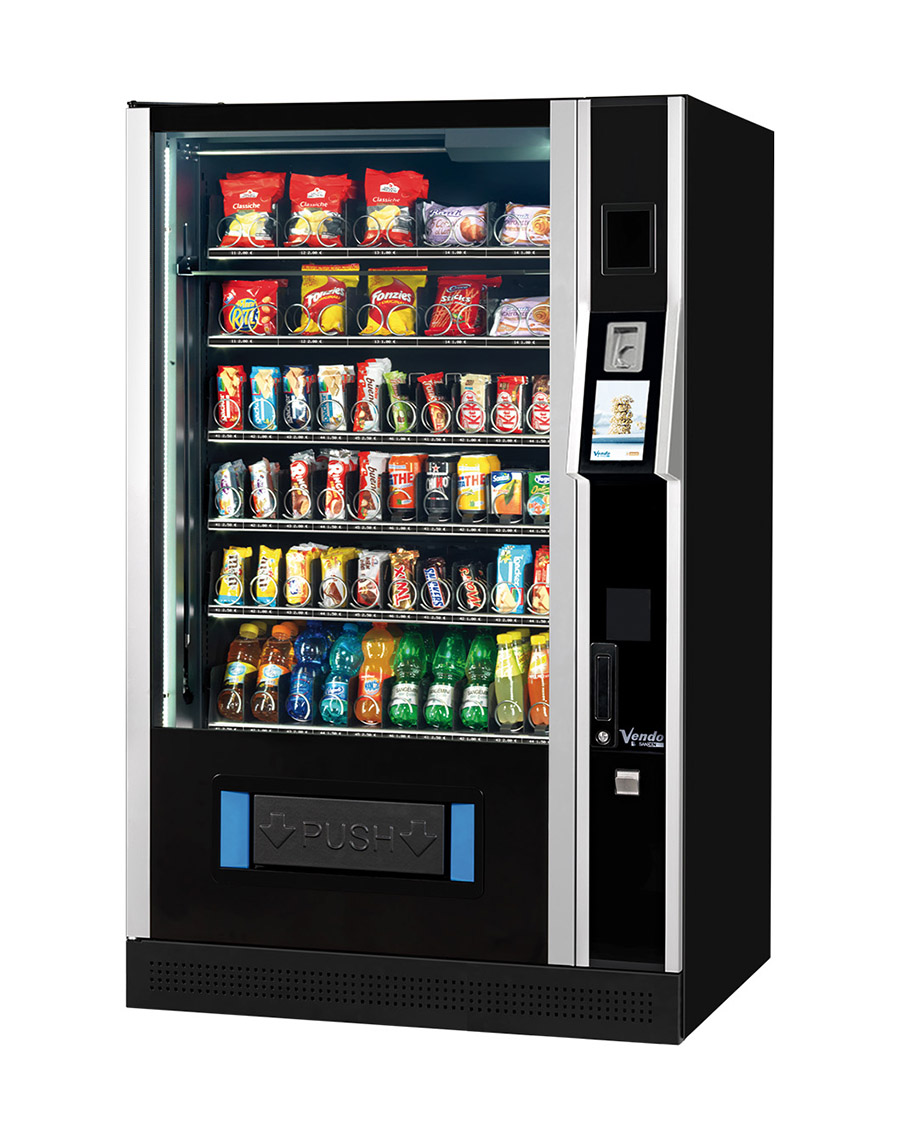

G-Snack Design Line SDX Master Vending Machine XL (Master)

G-Snack Design XL Master Vending Machine

Quick find code: SDX
Lead Time: Typically 10 to 14 weeks
Model: SDX
Manufacturer: SandenVendo
Condition: New
Product Code: SDX
Dimensions (mm): H1830 W1125 D845
Weight: 340kg
View Brochure
View Downloads

Description

The G-Snack SDX Design Line combination vending machine is a high capacity and evolutionary snack vending machine presented with a new look. A spacious and brightly illuminated merchandising area enhances the product display. The SDX vending machine is extremely popular with clients as it is a large model in the range and suitable for merchandising snacks, drinks, food or retail products with an internal temperature range of 2 - 18°C. It also includes health switch control for perishable or temperature sensitive items.

The G-Snack SDX combi machine is supplied as a modular solution with a range of options that can be selected by the customer to meet their specific vending needs. These upgrades include 7" touchscreen and e-labelling system for enhanced user experience and displaying important information to consumers. A speedy elevator system is also available to ensure products are delivered safely and reliably while allowing fragile or delicate items to be stocked and dispensed from any height. The Design Line styling also adds to aesthetics and includes a smoked polycarbonate control panel fascia and flashes of blue around the dispense area. This vending machine is produced by SandenVendo who are a leading Japanese vending machine manufacturer.

The SDX combi vending machine is supplied as standard from our website as a spiral only model using the unique and highly flexible SandenVendo clip and ratchet system. The SDX also has modular dispense flexibility and can be upgraded and fitted with pusher and/or conveyor dispense systems at an additional cost. A mix of spiral, pusher and conveyor dispense systems can all be fitted to the same machine. This is a new and great feature for clients with more demanding product requirements, especially for retail applications where product flexibility and adjustability are key factors for consideration when selecting an automated retail hardware solution. These planogram configurations are more specialist, so please ask us for further information and a member of our team will be pleased to assist you. Once the planogram layout has been defined we can then provide you with a quotation and lead time.

The SDX has been updated for 2022 to include the latest state-of-the-art hydrocarbon R290 chiller unit. The non-toxic hydrocarbons are an eco-friendly alternative to the CFC/HCFC/HFC fluorocarbons which contribute to ozone damage.

Details

The G-Snack Design line SDX XL vending machine from SandenVendo is extremely capable and versatile. With an optional speedy elevator system to ensure products are delivered safely and reliably while also allowing fragile or delicate items to be stocked at any height. Pusher and conveyor dispense systems can also be included at an additional cost for more challenging product vending requirements.

Increasing reliability further, this snack vending machine is supplied as standard with optical sensors which are triggered when a product breaks an invisible beam. If the beam is not broken, the snack machine will try again; ensuring a successful vend. Pusher and conveyor dispense systems can also be included at an additional cost for more challenging product vending requirements.

The SDX snack and food vending machine is a large model in the G-Snack range. As standard this machine is supplied with 6 shelves fitted. Each shelf includes 10 single motor selections providing a maximum total of 60 selections. For clients with smaller height products who require increased capacity, an additional shelf can be added to the machine to increase the maximum total of selections to 70. Motor selections can also be paired and dual driven to suit wider products.

As a snack only vending machine, the standard configuration is usually three rows of chocolate bars at the bottom and three rows of crisps or bagged sweets at the top. Alternatively, as a combination vending machine, the planogram is usually configured with one row (bottom) for 500ml PET bottles, one row (second shelf) for 330ml or 250ml cans, two rows for chocolate bars, and two rows (top two shelves) for crisps or bagged sweets. Customisable planograms can be also be provided and there is provision for non-food/drink related setups for retail products.

The temperature is controlled thermostatically, with a range of 2 - 18°C. The G-Snack also features a safety health control which prevents sales, should the machine remain above the allowed temperature for over 30 minutes.

If you're interested to know more regarding the history of the vending machine manufacturer 'SandenVendo', a number of feature articles can be seen here:

Product Features

Insulated cabinet (35mm Eco PU Foam)
Double pane glass
LED lighting
Temperature range: 2°C - 18°C
Power supply: 230-240V AC/50 Hz
Product shelves: standard 6 / max 7
Product selections: 10 per shelf, total 60 (6 shelves) / max 70 (7 shelves)
Modular planograms with spiral, pusher and conveyor dispense systems
Payment system protocol compatibility: MDB / Executive
Electronic temperature and health switch control
Good energy rating with HC R290 environmentally friendly chiller unit
Highly customisable planogram setup
Wide range options and upgrades depending on your requirements (including touchscreen, e-labelling, speedy elevator etc)
Design Line styling with smoked polycarbonate control panel fascia
Leading Japanese vending manufacturer
High quality automated retail solution
As used by leading global FMCG sector brands
Fragile product safe delivery with optional elevator delivery mechanism
