G-Drink DM6 Vertical Soft Drinks Vending Machine (Master)

Quick find code: DM6
Lead Time: Typically 4 to 6 weeks
Model: G-Drink DM6
Manufacturer: SandenVendo
Condition: New
Product Code: DM6
Dimensions (mm): H1830 W940 D845
Weight: 295kg
View Brochure
View Downloads

Description

The G-Drink DM6 Vertical XY soft drinks vending machine is a leading global solution for dispensing cans, bottles, tubes and tetra-pak shaped products. The DM6 cold drinks machine is fitted with a steel control panel fascia for additional security and the merchandiser provides a spacious and brightly illuminated showcase to enhance product visibility. For the standard model, new user friendly features offer a large display in blue characters with a new easy door latching system. The machine can now also be upgraded to include a 7" touch screen at an additional cost.

The 'Vertical' feature increases reliability based on the previous system and minimises product jams. This soft drinks machine can be supplied with a range of dispense aid spacers to suit different packaging types and products with varying diameters. This medium sized vending machine is produced by SandenVendo who are a leading Japanese vending machine manufacturer.

The DM6 soft drinks machine was updated in 2022 to include the latest state-of-the-art hydrocarbon R290 environmentally friendly chiller unit. The non-toxic hydrocarbons are an eco-friendly alternative to the CFC/HCFC/HFC fluorocarbons which contribute to ozone damage.

For this SandenVendo master vending machine model, there is also the option to add a G-Snack bolt-on expansion unit. These connectable units bank to the side of a master vending machine and are fully controlled by it. This configuration increases overall capacity and product range for spiral snack and combi setups, while being more cost-effective than purchasing two separate master machines. When paired, both units operate using the same payment system(s), further reducing costs and simplifying management. Adding an expansion unit is an excellent way to grow your sales offering and maximise capacity without the expense of a second standalone master machine.

Details

Inspired from its highly successful predecessor, the G-Drink DR6 vending machine, the new DM6 provides increased product capacity and flexibility, while still maintaining the excellent performance proven by the G-Drink.

The new X-axis 'Vertical' mechanism has the advantage that if one or more sales fail (for example, the product falls into the base of the machine) the vending machine does not go out of service. Instead the machine continues to operate and the product falls into the compartment below the X-axis mechanism.

As with the other cold drinks vending machines in the G-Drink range, the DM6 includes cutting edge Japanese technology and features one of the most innovative drinks catchers/delivery systems available on the market. In less than 8 seconds, drinks are dispensed quickly, but carefully, so as to minimise 'fizz'. Drinks remain in their upright position throughout vending - even once delivered.

To boost reliability, the G-Drink DM6 soft drinks machine incorporates optic sensors to determine successful vending. If a product does not break the beam during delivery, the vending machine will keep trying, or provide a refund to the customer.

The G-Drink models are low energy class vending machines. These vending machines are fitted with LED lighting as standard, which provide the perfect brightness for illuminating the product display window while also consuming significantly less energy than the typical alternatives used by other vending machines.

If you're interested to know more regarding the history of the vending machine manufacturer 'SandenVendo', a number of feature articles can be seen here:

Product Features

Robotic XY dispense system designed in Japan
As used by leading global FMCG sector cold drinks brands
Perfect for cans, bottles, tubes and tetra-pak products
Range of spacers available for product flexibility
Steel control panel fascia for additional security
State-of-the-art hydrocarbon R290 environmentally friendly chiller unit

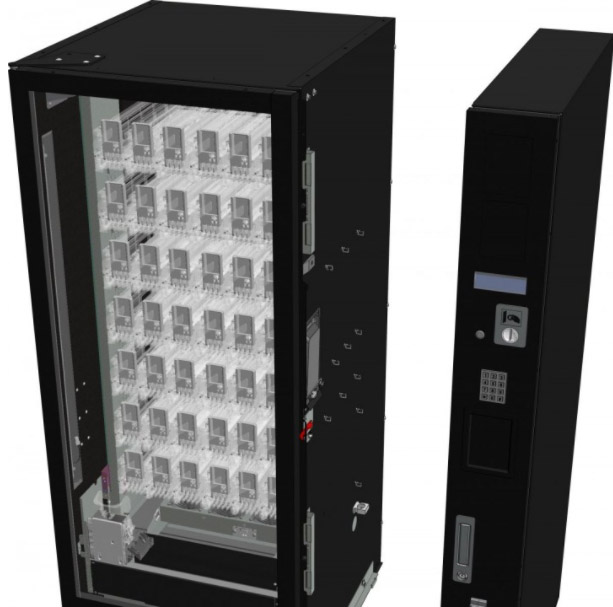

Modular construction for sites with restricted access (removable control panel drawer)
Vertical rail system to minimise product jams

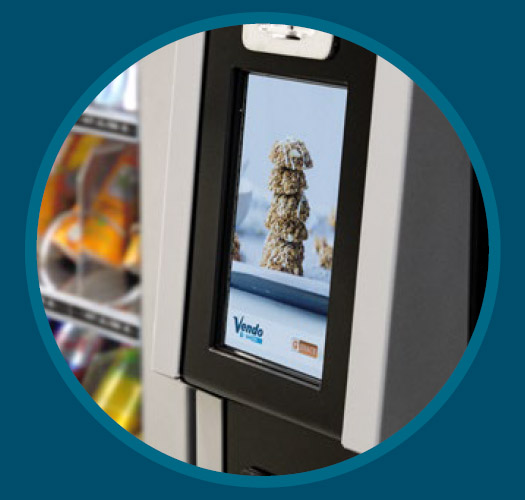

Optional 7" touch screen & Linux controller
Rapid vending product dispense cycles
Mid-height vend port for easy & convenient cold drinks product retrieval
Highly customisable planogram setup
Wide range options and upgrades depending on your requirements
Leading Japanese vending manufacturer
Optional bolt-on G-Snack slave machine available to maximise spiral dispense snack or combi capacity
